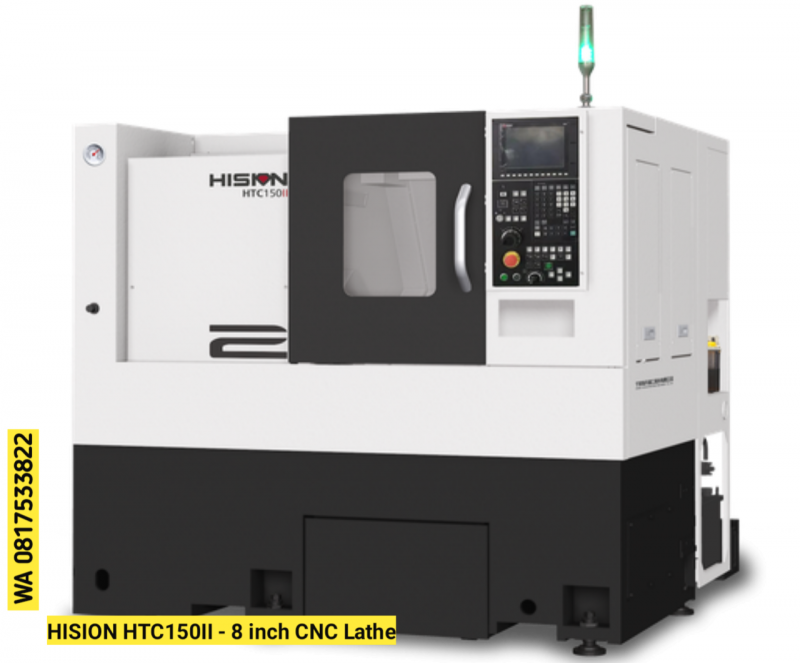

HISION HTC 150 CNC LATHE
Dapatkan Spesifikasi Harga HISION HTC 150 CNC LATHE Produk Terbaik dari
PT. Buana Arta Toolindo AUTHORIZED DISTRIBUTOR ZCC CUTTING TOOLS IN THE INDONESIA REGIONS
Produk Detail

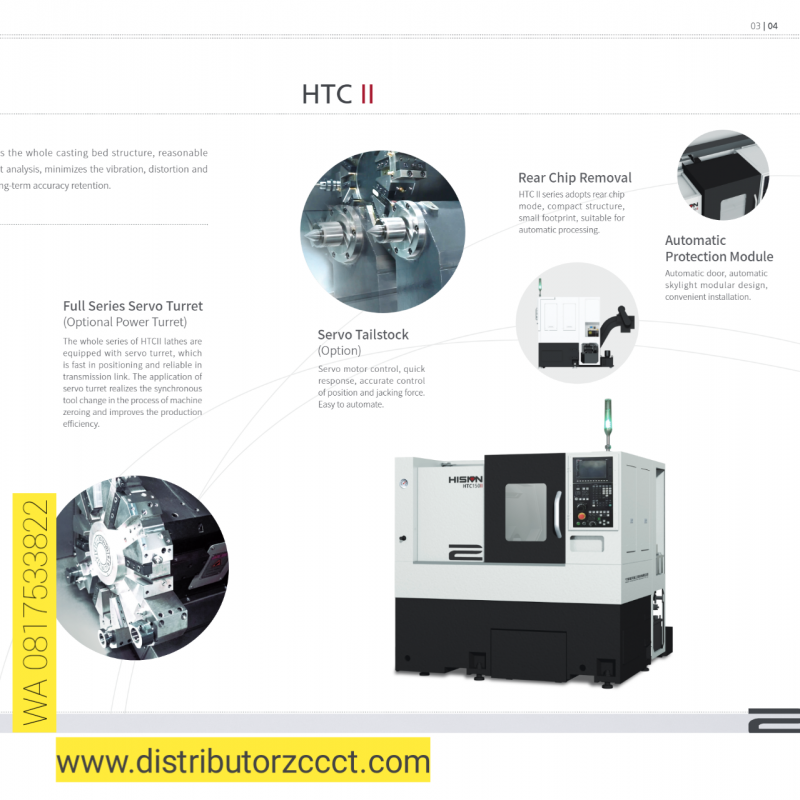

HTC SeriesSpecifications cover HTC150II/HTC200II/HTC300II
Full-series motorized spindle
Small inertia and quick start and stop
Fast servo turret
Automated servo tailstock
HTC Series is an integral cast-iron inclined bed mechanism. Through finite element analysis, the wide-area asynchronous two-speed motorized spindle is used to make the processing faster, more precise and more efficient, and the series is endowed with environmental protection and energy-saving characteristics, therefore widely used in automotive parts, energy, hardware and other precision machining fields.
Max. turning diameter:
Φ400 mm
Max. turning length:
360 mm
Max. spindle speed:
4500 rpm
Spindle power:
11/15 kW
Spindle torque:
158/211 Nm
Rapid traverse X/Y/Z
24/30 m/min
