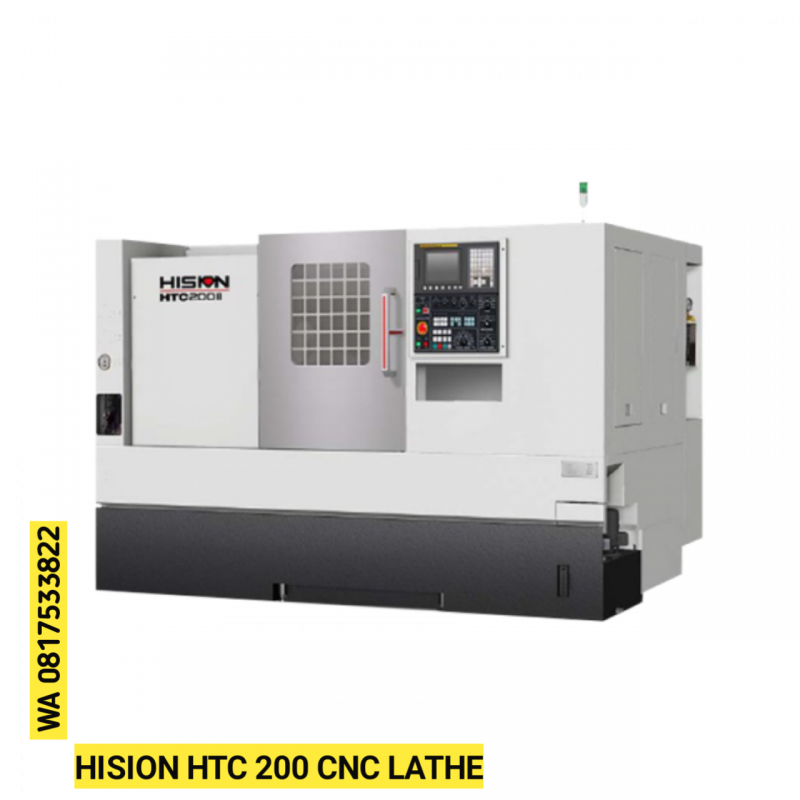

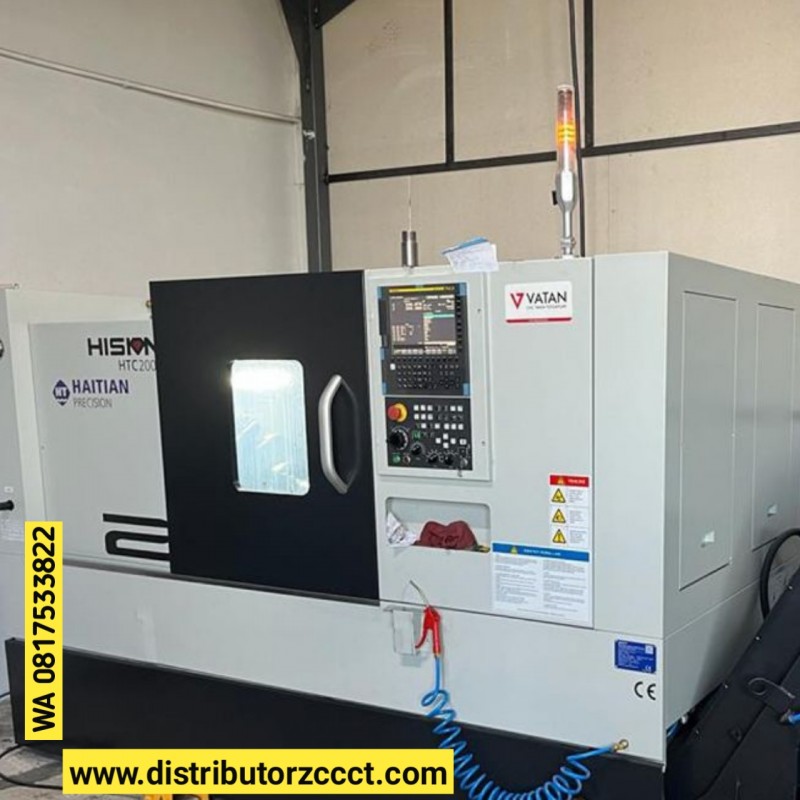

HISION HTC200 CNC LATHE / CNC BUBUT
Dapatkan Spesifikasi Harga HISION HTC200 CNC LATHE / CNC BUBUT Produk Terbaik dari
PT. Buana Arta Toolindo AUTHORIZED DISTRIBUTOR ZCC CUTTING TOOLS IN THE INDONESIA REGIONS
Produk Detail
Items Unit HTC200 II X 560» Working Area
Max. swing over bed mm Φ620
Max. swing over saddle mm Φ410
Max. turning diameter mm Φ400
Max. turning length mm 560
Spindle center to ground mm 1035
» High Speed Motorized Spindle
Max. spindle speed rpm 4500
Spindle power
(continuous/30min overload) kW 15/22
(OP FANUC 11/15)
Spindle torque Nm 159/252
(OP FANUC 158/211)
Spindle nose taper - JISA2-6
Spindle through hole mm Φ66
Spindle bearing diameter mm Φ100
Chuck size inch 8
» Turret
Type - Servo V12
OD tool size mm 25x25
Max. boring bar size mm Φ40
» Tailstock
Tailstock type - Hydraulic
Tailstock travel mm 550
Quill taper - MT.NO.5
» Feed Shaft
X/Z axis travel mm 215/615
Rapid feed X/Z axis m/min 24/30
Guideway type - Linear guideway
X/Z axis power kW 2.2/2.2 (OP FANUC 1.8/1.8)
» Others
Power capacity kVA 35
Machine size (LxWxH) (without conveyor) cm 310x185x175
Machine weight t 4.8
